Martens浊度仪MAT433和MAT437用于食品和饮料行业的相位检测。 根据EN ISO 27027的吸收测量原理设计用于测量非常高的浊度。 浊度以最大测量值的百分比输出。 进入基于甲酸盐的单元FAU。

●扫描高浊度水平的宽测量范围

●吸收浊度测量符合EN ISO 27027标准

●2个开关输出，功能可编程

●模拟输出0 / 4..20 mA

●通过GHMware和内部迷你USB接口进行参数化

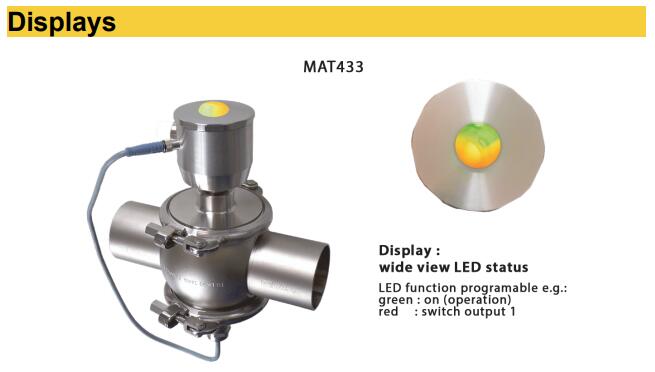

●宽视野LED状态显示（MAT433）

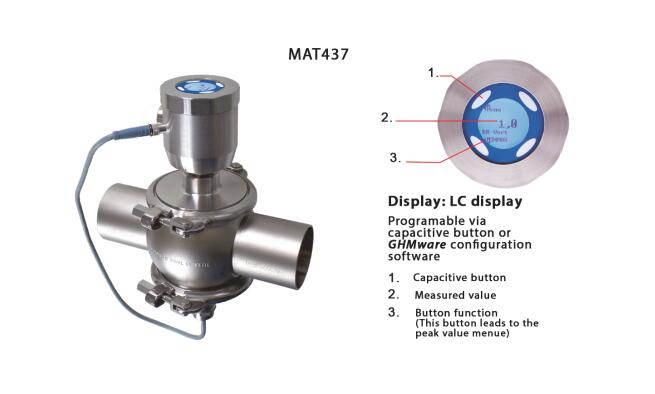

●带电容式按钮的图形液晶显示器（MAT437）

Martens 浊度仪 MAT433 / MAT437 浊度传感器 Martens of the GHM GROUP

Technical data

Power supply

Supply voltage : 18..30 V DC, max. 3 W

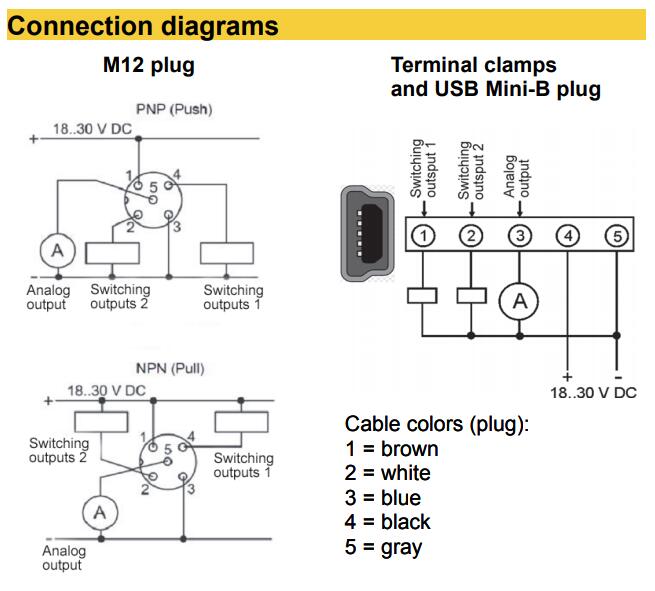

Electrical connection : M12 plug or cable gland M16x1.5 polyamide (PA) or stainless steel (1.4305)

CE-conformity : EN 61326-1:2013

Ambient conditions

Ambient temperature : -10..+60 °C

Climatic class : EN 60068-2-38:2009

Vibration class : EN 60068-2-6:2008, GL test 2

Sensor

Measuring range : 0…100 % Absorption, scalable in material specific concentration units, 0…4000 FAU

Accuracy : +/- 2 %

Process temperature : 0..+90 °C, 120 °C < 30 min

Process pressure : 0..10 bar

Process material : 1.4404, sapphire glass

Process connection : welded connection acc. EN 10357:2013 series A (former DIN 11850, series2),Milk pipe thread acc. DIN 11851(optional)

Outputs

Analog output : active 0/4..20 mA, burden < 600 Ω

Switching outputs : 2 x transistor PNP / NPN programmable max.30 V DC, 100 mA

Response time : programmable 0,01 .. 10 s

Display MAT433 : LEDs, 3 colors, programmable

Display MAT437 : Graphic LC-Display, lighted white/red 4 capacitive buttons

Case : round stainless steel housing Ø 59 mm

Material : 1.4305

LED / LCD window : acrylic glass (PMMA)

Protection class : IP67 / IP69K

Martens 浊度仪 MAT433 / MAT437 浊度传感器 Martens of the GHM GROUP

Accessory

ACI211 USB connection cable

ACH connection cable
